从零开始构建基于Kubernetes的Devops平台

apiVersion: v1
kind: Namespace
metadata:
  name: jenkins
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: jenkins
  namespace: jenkins
---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: ClusterRoleBinding
metadata:
  name: jenkins-crb
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cluster-admin
subjects:
- kind: ServiceAccount
  name: jenkins
  namespace: jenkins
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: jenkins-master
  namespace: jenkins
spec:
  replicas: 1
  selector:
    matchLabels:
      devops: jenkins-master
  template:
    metadata:
      labels:
        devops: jenkins-master
    spec:
      nodeSelector:
        jenkins: "true"
      serviceAccount: jenkins #Pod 需要使用的服务账号
      initContainers:
      - name: fix-permissions
        image: busybox
        command: ["sh", "-c", "chown -R 1000:1000 /var/jenkins_home"]
        securityContext:
          privileged: true
        volumeMounts:
        - name: jenkinshome
          mountPath: /var/jenkins_home
      containers:
      - name: jenkins
        image: jenkinsci/blueocean:1.23.2
        imagePullPolicy: IfNotPresent
        ports:
        - name: http #Jenkins Master Web 服务端口
          containerPort: 8080
        - name: slavelistener #Jenkins Master 供未来 Slave 连接的端口
          containerPort: 50000
        volumeMounts:
        - name: jenkinshome
          mountPath: /var/jenkins_home
        env:
        - name: JAVA_OPTS
          value: "-Xms4096m -Xmx5120m -Duser.timezone=Asia/Shanghai -Dhudson.model.DirectoryBrowserSupport.CSP="
      volumes:
      - name: jenkinshome
        hostPath:
          path: /var/jenkins_home/
---
apiVersion: v1
kind: Service
metadata:
  name: jenkins
  namespace: jenkins
spec:
  ports:
  - name: http
    port: 8080
    targetPort: 8080
  - name: slavelistener
    port: 50000
    targetPort: 50000
  type: ClusterIP
  selector:
    devops: jenkins-master
---
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: jenkins-web
  namespace: jenkins
spec:
  rules:
  - host: jenkins.luffy.com
    http:
      paths:
      - backend:
          serviceName: jenkins
          servicePort: 8080
        path: /

## 为k8s-slave1打标签，将jenkins-master部署在k8s-slave1节点
$ kubectl label node k8s-slave1 jenkins=true
## 部署服务
$ kubectl create -f jenkins-all.yaml
## 查看服务
$ kubectl -n jenkins get po
NAME                              READY   STATUS    RESTARTS   AGE
jenkins-master-767df9b574-lgdr5   1/1     Running   0          20s

# 查看日志，第一次启动提示需要完成初始化设置
$ kubectl -n jenkins logs -f jenkins-master-767df9b574-lgdr5
......
*************************************************************

Jenkins initial setup is required. An admin user has been created and a password generated.
Please use the following password to proceed to installation:

5396b4e1c395450f8360efd8ee641b18

This may also be found at: /var/jenkins_home/secrets/initialAdminPassword

*************************************************************

$ kubectl -n jenkins exec jenkins-master-767df9b574-lgdr5 bash
/ # cat /var/jenkins_home/secrets/initialAdminPassword
35b083de1d25409eaef57255e0da481a

$ cd /var/jenkins_home/updates
$ sed -i 's/http:\/\/updates.jenkins-ci.org\/download/https:\/\/mirrors.tuna.tsinghua.edu.cn\/jenkins/g' default.json
$ sed -i 's/http:\/\/www.google.com/https:\/\/www.baidu.com/g' default.json

## 全量部署的组件
$ gitlab-ctl status
run: alertmanager: (pid 1987) 27s; run: log: (pid 1986) 27s
run: gitaly: (pid 1950) 28s; run: log: (pid 1949) 28s
run: gitlab-exporter: (pid 1985) 27s; run: log: (pid 1984) 27s
run: gitlab-workhorse: (pid 1956) 28s; run: log: (pid 1955) 28s
run: logrotate: (pid 1960) 28s; run: log: (pid 1959) 28s
run: nginx: (pid 2439) 1s; run: log: (pid 1990) 27s
run: node-exporter: (pid 1963) 28s; run: log: (pid 1962) 28s
run: postgres-exporter: (pid 1989) 27s; run: log: (pid 1988) 27s
run: postgresql: (pid 1945) 28s; run: log: (pid 1944) 28s
run: prometheus: (pid 1973) 28s; run: log: (pid 1972) 28s
run: puma: (pid 1968) 28s; run: log: (pid 1966) 28s
run: redis: (pid 1952) 28s; run: log: (pid 1951) 28s
run: redis-exporter: (pid 1971) 28s; run: log: (pid 1964) 28s
run: sidekiq: (pid 1969) 28s; run: log: (pid 1967) 28s

172.21.51.67 gitlab.luffy.com

$ echo "172.21.51.67 gitlab.luffy.com" >>/etc/hosts

mkdir demo
cp -r myblog demo/
cd demo/myblog
git remote rename origin old-origin
git remote add origin http://gitlab.luffy.com/root/myblog.git
git push -u origin --all
git push -u origin --tags

FROM jenkinsci/blueocean:1.23.2
LABEL maintainer="inspur_lyx@hotmail.com"

## 用最新的插件列表文件替换默认插件文件
COPY plugins.txt /usr/share/jenkins/ref/

## 执行插件安装
RUN /usr/local/bin/install-plugins.sh < /usr/share/jenkins/ref/plugins.txt

ace-editor:1.1
allure-jenkins-plugin:2.28.1
ant:1.10
antisamy-markup-formatter:1.6
apache-httpcomponents-client-4-api:4.5.10-1.0
authentication-tokens:1.3
...

#!/usr/bin/env bash
curl -sSL  "http://admin:123456@localhost:8080/pluginManager/api/xml?depth=1&xpath=/*/*/shortName|/*/*/version&wrapper=plugins" | perl -pe 's/.*?<shortName>([\w-]+).*?<version>([^<]+)()(<\/\w+>)+/\1:\2\n/g'|sed 's/ /:/' > plugins.txt

## 执行构建，定制jenkins容器
$ docker build . -t 172.21.51.67:5000/jenkins:v20200414 -f Dockerfile
$ docker push 172.21.51.67:5000/jenkins:v20200414

## 删掉当前服务
$ kubectl delete -f jenkins-all.yaml

## 删掉已挂载的数据
$ rm -rf /var/jenkins_home

## 替换使用定制化镜像
$ sed -i 's#jenkinsci/blueocean#172.21.51.67:5000/jenkins:v20200404#g' jenkins-all.yaml

## 重新创建服务
$ kubectl create -f jenkins-all.yaml

pipeline {
    agent {label '172.21.51.68'}
    environment {
        PROJECT = 'myblog'
    }
    stages {
        stage('Checkout') {
            steps {
                checkout scm
            }
        }
        stage('Build') {
            steps {
                sh 'make'
            }
        }
        stage('Test'){
            steps {
                sh 'make check'
                junit 'reports/**/*.xml'
            }
        }
        stage('Deploy') {
            steps {
                sh 'make publish'
            }
        }
    }
	post {
        success {
            echo 'Congratulations!'
        }
		failure {
            echo 'Oh no!'
        }
        always {
            echo 'I will always say Hello again!'
        }
    }
}

pipeline {
   agent {label '172.21.51.68'}
   environment {
      PROJECT = 'myblog'
   }
   stages {
      stage('printenv') {
         steps {
            echo 'Hello World'
            sh 'printenv'
         }
      }
      stage('check') {
         steps {
            checkout([$class: 'GitSCM', branches: [[name: '*/master']], doGenerateSubmoduleConfigurations: false, extensions: [], submoduleCfg: [], userRemoteConfigs: [[credentialsId: 'gitlab-user', url: 'http://gitlab.luffy.com/root/myblog.git']]])
         }
      }
      stage('build-image') {
         steps {
            sh 'docker build . -t myblog:latest -f Dockerfile'
         }
      }
      stage('send-msg') {
         steps {
            sh """
            curl 'https://oapi.dingtalk.com/robot/send?access_token=67e81175c6ebacb1307e83f62680f36fbcf4524e8f43971cf2fb2049bc58723d' \
   -H 'Content-Type: application/json' \
   -d '{"msgtype": "text",
        "text": {
             "content": "我就是我, 是不一样的烟火"
        }
      }'
      """
         }
      }
   }
}

pipeline {
   agent { label '172.21.51.68'}

   stages {
      stage('printenv') {
         steps {
            echo 'Hello World'
            sh 'printenv'
         }
      }
      stage('check') {
         steps {
            checkout([$class: 'GitSCM', branches: [[name: '*/master']], doGenerateSubmoduleConfigurations: false, extensions: [], submoduleCfg: [], userRemoteConfigs: [[credentialsId: 'gitlab-user', url: 'http://gitlab.luffy.com/root/myblog.git']]])
         }
      }
      stage('build-image') {
         steps {
            retry(2) { sh 'docker build . -t myblog:latest'}
         }
      }
      stage('send-msg') {
         steps {
            sh """
            curl 'https://oapi.dingtalk.com/robot/send?access_token=67e81175c6ebacb1307e83f62680f36fbcf4524e8f43971cf2fb2049bc58723d' \
   -H 'Content-Type: application/json' \
   -d '{"msgtype": "text",
        "text": {
             "content": "我就是我, 是不一样的烟火"
        }
      }'
      """
         }
      }
   }
}

pipeline {
    agent { label '172.21.51.68'}

    stages {
        stage('printenv') {
            steps {
            echo 'Hello World'
            sh 'printenv'
            }
        }
        stage('check') {
            steps {
                checkout scm
            }
        }
        stage('build-image') {
            steps {
            	retry(2) { sh 'docker build . -t myblog:${GIT_COMMIT}'}
            }
        }
    }
    post {
        success {
            echo 'Congratulations!'
            sh """
                curl 'https://oapi.dingtalk.com/robot/send?access_token=67e81175c6ebacb1307e83f62680f36fbcf4524e8f43971cf2fb2049bc58723d' \
                    -H 'Content-Type: application/json' \
                    -d '{"msgtype": "text",
                            "text": {
                                "content": "😄👍构建成功👍😄\n 关键字：luffy\n 项目名称: ${JOB_BASE_NAME}\n Commit Id: ${GIT_COMMIT}\n 构建地址：${RUN_DISPLAY_URL}"
                        }
                }'
            """
        }
        failure {
            echo 'Oh no!'
            sh """
                curl 'https://oapi.dingtalk.com/robot/send?access_token=67e81175c6ebacb1307e83f62680f36fbcf4524e8f43971cf2fb2049bc58723d' \
                    -H 'Content-Type: application/json' \
                    -d '{"msgtype": "text",
                            "text": {
                                "content": "😖❌构建失败❌😖\n 关键字：luffy\n 项目名称: ${JOB_BASE_NAME}\n Commit Id: ${GIT_COMMIT}\n 构建地址：${RUN_DISPLAY_URL}"
                        }
                }'
            """
        }
        always {
            echo 'I will always say Hello again!'
        }
    }
}

pipeline {
    agent { label '172.21.51.68'}

    environment {
        IMAGE_REPO = "172.21.51.67:5000/myblog"
    }

    stages {
        stage('printenv') {
            steps {
              echo 'Hello World'
              sh 'printenv'
            }
        }
        stage('check') {
            steps {
                checkout scm
            }
        }
        stage('build-image') {
            steps {
                retry(2) { sh 'docker build . -t ${IMAGE_REPO}:${GIT_COMMIT}'}
            }
        }
        stage('push-image') {
            steps {
                retry(2) { sh 'docker push ${IMAGE_REPO}:${GIT_COMMIT}'}
            }
        }
        stage('deploy') {
            steps {
                sh "sed -i 's#{{IMAGE_URL}}#${IMAGE_REPO}:${GIT_COMMIT}#g' deploy/*"
                timeout(time: 1, unit: 'MINUTES') {
                    sh "kubectl apply -f deploy/"
                }
            }
        }
    }
    post {
        success {
            echo 'Congratulations!'
            sh """
                curl 'https://oapi.dingtalk.com/robot/send?access_token=67e81175c6ebacb1307e83f62680f36fbcf4524e8f43971cf2fb2049bc58723d' \
                    -H 'Content-Type: application/json' \
                    -d '{"msgtype": "text",
                            "text": {
                                "content": "😄👍构建成功👍😄\n 关键字：myblog\n 项目名称: ${JOB_BASE_NAME}\n Commit Id: ${GIT_COMMIT}\n 构建地址：${RUN_DISPLAY_URL}"
                        }
                }'
            """
        }
        failure {
            echo 'Oh no!'
            sh """
                curl 'https://oapi.dingtalk.com/robot/send?access_token=67e81175c6ebacb1307e83f62680f36fbcf4524e8f43971cf2fb2049bc58723d' \
                    -H 'Content-Type: application/json' \
                    -d '{"msgtype": "text",
                            "text": {
                                "content": "😖❌构建失败❌😖\n 关键字：luffy\n 项目名称: ${JOB_BASE_NAME}\n Commit Id: ${GIT_COMMIT}\n 构建地址：${RUN_DISPLAY_URL}"
                        }
                }'
            """
        }
        always {
            echo 'I will always say Hello again!'
        }
    }
}

pipeline {
    agent {
        // 此处定义 agent 的细节
    }
    environment {
        //顶层流水线块中使用的 environment 指令将适用于流水线中的所有步骤。
        BITBUCKET_COMMON_CREDS = credentials('jenkins-bitbucket-common-creds')
    }
    stages {
        stage('Example stage 1') {
 			//在一个 stage 中定义的 environment 指令只会将给定的环境变量应用于 stage 中的步骤。
            environment {
                BITBUCKET_COMMON_CREDS = credentials('another-credential-id')
            }
            steps {
                //
            }
        }
        stage('Example stage 2') {
            steps {
                //
            }
        }
    }
}

pipeline {
    agent { label '172.21.51.68'}

    environment {
        IMAGE_REPO = "172.21.51.67:5000/myblog"
        DINGTALK_CREDS = credentials('dingTalk')
    }

    stages {
        stage('printenv') {
            steps {
            echo 'Hello World'
            sh 'printenv'
            }
        }
        stage('check') {
            steps {
                checkout scm
            }
        }
        stage('build-image') {
            steps {
                retry(2) { sh 'docker build . -t ${IMAGE_REPO}:${GIT_COMMIT}'}
            }
        }
        stage('push-image') {
            steps {
                retry(2) { sh 'docker push ${IMAGE_REPO}:${GIT_COMMIT}'}
            }
        }
        stage('deploy') {
            steps {
                sh "sed -i 's#{{IMAGE_URL}}#${IMAGE_REPO}:${GIT_COMMIT}#g' deploy/*"
                timeout(time: 1, unit: 'MINUTES') {
                    sh "kubectl apply -f deploy/"
                }
            }
        }
    }
    post {
        success {
            echo 'Congratulations!'
            sh """
                curl 'https://oapi.dingtalk.com/robot/send?access_token=${DINGTALK_CREDS_PSW}' \
                    -H 'Content-Type: application/json' \
                    -d '{"msgtype": "text",
                            "text": {
                                "content": "😄👍构建成功👍😄\n 关键字：luffy\n 项目名称: ${JOB_BASE_NAME}\n Commit Id: ${GIT_COMMIT}\n 构建地址：${RUN_DISPLAY_URL}"
                        }
                }'
            """
        }
        failure {
            echo 'Oh no!'
            sh """
                curl 'https://oapi.dingtalk.com/robot/send?access_token=${DINGTALK_CREDS_PSW}' \
                    -H 'Content-Type: application/json' \
                    -d '{"msgtype": "text",
                            "text": {
                                "content": "😖❌构建失败❌😖\n 关键字：luffy\n 项目名称: ${JOB_BASE_NAME}\n Commit Id: ${GIT_COMMIT}\n 构建地址：${RUN_DISPLAY_URL}"
                        }
                }'
            """
        }
        always {
            echo 'I will always say Hello again!'
        }
    }
}

$ git checkout -b develop
$ git push --set-upstream origin develop

pipeline {
    agent { label '172.21.51.68'}

    environment {
        IMAGE_REPO = "172.21.51.67:5000/myblog"
        DINGTALK_CREDS = credentials('dingTalk')
        TAB_STR = "\n                    \n                    "
    }

    stages {
        stage('printenv') {
            steps {
                script{
                    sh "git log --oneline -n 1 > gitlog.file"
                    env.GIT_LOG = readFile("gitlog.file").trim()
                }
                sh 'printenv'
            }
        }
        stage('checkout') {
            steps {
                checkout scm
                script{
                    env.BUILD_TASKS = env.STAGE_NAME + "√..." + env.TAB_STR
                }
            }
        }
        stage('build-image') {
            steps {
                retry(2) { sh 'docker build . -t ${IMAGE_REPO}:${GIT_COMMIT}'}
                script{
                    env.BUILD_TASKS += env.STAGE_NAME + "√..." + env.TAB_STR
                }
            }
        }
        stage('push-image') {
            steps {
                retry(2) { sh 'docker push ${IMAGE_REPO}:${GIT_COMMIT}'}
                script{
                    env.BUILD_TASKS += env.STAGE_NAME + "√..." + env.TAB_STR
                }
            }
        }
        stage('deploy') {
            steps {
                sh "sed -i 's#{{IMAGE_URL}}#${IMAGE_REPO}:${GIT_COMMIT}#g' deploy/*"
                timeout(time: 1, unit: 'MINUTES') {
                    sh "kubectl apply -f deploy/"
                }
                script{
                    env.BUILD_TASKS += env.STAGE_NAME + "√..." + env.TAB_STR
                }
            }
        }
    }
    post {
        success {
            echo 'Congratulations!'
            sh """
                curl 'https://oapi.dingtalk.com/robot/send?access_token=${DINGTALK_CREDS_PSW}' \
                    -H 'Content-Type: application/json' \
                    -d '{
                        "msgtype": "markdown",
                        "markdown": {
                            "title":"myblog",
                            "text": "😄👍 构建成功 👍😄  \n**项目名称**：luffy  \n**Git log**: ${GIT_LOG}   \n**构建分支**: ${GIT_BRANCH}   \n**构建地址**：${RUN_DISPLAY_URL}  \n**构建任务**：${BUILD_TASKS}"
                        }
                    }'
            """
        }
        failure {
            echo 'Oh no!'
            sh """
                curl 'https://oapi.dingtalk.com/robot/send?access_token=${DINGTALK_CREDS_PSW}' \
                    -H 'Content-Type: application/json' \
                    -d '{
                        "msgtype": "markdown",
                        "markdown": {
                            "title":"myblog",
                            "text": "😖❌ 构建失败 ❌😖  \n**项目名称**：luffy  \n**Git log**: ${GIT_LOG}   \n**构建分支**: ${GIT_BRANCH}  \n**构建地址**：${RUN_DISPLAY_URL}  \n**构建任务**：${BUILD_TASKS}"
                        }
                    }'
            """
        }
        always {
            echo 'I will always say Hello again!'
        }
    }
}

pipeline {
    agent { label '172.21.51.68'}

    options {
		buildDiscarder(logRotator(numToKeepStr: '10'))
		disableConcurrentBuilds()
		timeout(time: 20, unit: 'MINUTES')
		gitLabConnection('gitlab')
	}

    environment {
        IMAGE_REPO = "172.21.51.67:5000/demo/myblog"
        DINGTALK_CREDS = credentials('dingTalk')
        TAB_STR = "\n                    \n                    "
    }

    stages {
        stage('printenv') {
            steps {
                script{
                    sh "git log --oneline -n 1 > gitlog.file"
                    env.GIT_LOG = readFile("gitlog.file").trim()
                }
                sh 'printenv'
            }
        }
        stage('checkout') {
            steps {
                checkout scm
                updateGitlabCommitStatus(name: env.STAGE_NAME, state: 'success')
                script{
                    env.BUILD_TASKS = env.STAGE_NAME + "√..." + env.TAB_STR
                }
            }
        }
        stage('build-image') {
            steps {
                retry(2) { sh 'docker build . -t ${IMAGE_REPO}:${GIT_COMMIT}'}
                updateGitlabCommitStatus(name: env.STAGE_NAME, state: 'success')
                script{
                    env.BUILD_TASKS += env.STAGE_NAME + "√..." + env.TAB_STR
                }
            }
        }
        stage('push-image') {
            steps {
                retry(2) { sh 'docker push ${IMAGE_REPO}:${GIT_COMMIT}'}
                updateGitlabCommitStatus(name: env.STAGE_NAME, state: 'success')
                script{
                    env.BUILD_TASKS += env.STAGE_NAME + "√..." + env.TAB_STR
                }
            }
        }
        stage('deploy') {
            steps {
                sh "sed -i 's#{{IMAGE_URL}}#${IMAGE_REPO}:${GIT_COMMIT}#g' deploy/*"
                timeout(time: 1, unit: 'MINUTES') {
                    sh "kubectl apply -f deploy/"
                }
                updateGitlabCommitStatus(name: env.STAGE_NAME, state: 'success')
                script{
                    env.BUILD_TASKS += env.STAGE_NAME + "√..." + env.TAB_STR
                }
            }
        }
    }
    post {
        success {
            echo 'Congratulations!'
            sh """
                curl 'https://oapi.dingtalk.com/robot/send?access_token=${DINGTALK_CREDS_PSW}' \
                    -H 'Content-Type: application/json' \
                    -d '{
                        "msgtype": "markdown",
                        "markdown": {
                            "title":"myblog",
                            "text": "😄👍 构建成功 👍😄  \n**项目名称**：luffy  \n**Git log**: ${GIT_LOG}   \n**构建分支**: ${BRANCH_NAME}   \n**构建地址**：${RUN_DISPLAY_URL}  \n**构建任务**：${BUILD_TASKS}"
                        }
                    }'
            """
        }
        failure {
            echo 'Oh no!'
            sh """
                curl 'https://oapi.dingtalk.com/robot/send?access_token=${DINGTALK_CREDS_PSW}' \
                    -H 'Content-Type: application/json' \
                    -d '{
                        "msgtype": "markdown",
                        "markdown": {
                            "title":"myblog",
                            "text": "😖❌ 构建失败 ❌😖  \n**项目名称**：luffy  \n**Git log**: ${GIT_LOG}   \n**构建分支**: ${BRANCH_NAME}  \n**构建地址**：${RUN_DISPLAY_URL}  \n**构建任务**：${BUILD_TASKS}"
                        }
                    }'
            """
        }
        always {
            echo 'I will always say Hello again!'
        }
    }
}

# 为准备运行jnlp-slave-agent的pod的节点打上label
$ kubectl label node k8s-slave1 agent=true

### 回放一次多分支流水线develop分支
agent { label 'jnlp-slave'}

$ docker pull jenkins/inbound-agent:4.3-4

$ mkdir tools;
$ cd tools;
$ cp `which kubectl` .
$ cp ~/.kube/config .

FROM alpine
LABEL maintainer="inspur_lyx@hotmail.com"
USER root

RUN sed -i 's/dl-cdn.alpinelinux.org/mirrors.tuna.tsinghua.edu.cn/g' /etc/apk/repositories && \
    apk update && \
    apk add  --no-cache openrc docker git curl tar gcc g++ make \
    bash shadow openjdk8 python2 python2-dev py-pip python3-dev openssl-dev libffi-dev \
    libstdc++ harfbuzz nss freetype ttf-freefont && \
    mkdir -p /root/.kube && \
    usermod -a -G docker root

COPY config /root/.kube/

RUN rm -rf /var/cache/apk/*
#-----------------安装 kubectl--------------------#
COPY kubectl /usr/local/bin/
RUN chmod +x /usr/local/bin/kubectl
# ------------------------------------------------#

$ docker build . -t 172.21.51.67:5000/devops/tools:v1
$ docker push 172.21.51.67:5000/devops/tools:v1

## 启动临时镜像做测试
$ docker run --rm -ti 172.21.51.67:5000/devops/tools:v1 bash
# / git clone http://xxxxxx.git
# / kubectl get no
# / python3
#/ docker

## 重新挂载docker的sock文件
docker run -v /var/run/docker.sock:/var/run/docker.sock --rm -ti 172.21.51.67:5000/devops/tools:v1 bash

pipeline {
    agent { label 'jnlp-slave'}

    options {
		buildDiscarder(logRotator(numToKeepStr: '10'))
		disableConcurrentBuilds()
		timeout(time: 20, unit: 'MINUTES')
		gitLabConnection('gitlab')
	}

    environment {
        IMAGE_REPO = "172.21.51.67:5000/myblog"
        DINGTALK_CREDS = credentials('dingTalk')
        TAB_STR = "\n                    \n                    "
    }

    stages {
        stage('printenv') {
            steps {
                script{
                    sh "git log --oneline -n 1 > gitlog.file"
                    env.GIT_LOG = readFile("gitlog.file").trim()
                }
                sh 'printenv'
            }
        }
        stage('checkout') {
            steps {
                container('tools') {
                    checkout scm
                }
                updateGitlabCommitStatus(name: env.STAGE_NAME, state: 'success')
                script{
                    env.BUILD_TASKS = env.STAGE_NAME + "√..." + env.TAB_STR
                }
            }
        }
        stage('build-image') {
            steps {
                container('tools') {
                    retry(2) { sh 'docker build . -t ${IMAGE_REPO}:${GIT_COMMIT}'}
                }
                updateGitlabCommitStatus(name: env.STAGE_NAME, state: 'success')
                script{
                    env.BUILD_TASKS += env.STAGE_NAME + "√..." + env.TAB_STR
                }
            }
        }
        stage('push-image') {
            steps {
                container('tools') {
                    retry(2) { sh 'docker push ${IMAGE_REPO}:${GIT_COMMIT}'}
                }
                updateGitlabCommitStatus(name: env.STAGE_NAME, state: 'success')
                script{
                    env.BUILD_TASKS += env.STAGE_NAME + "√..." + env.TAB_STR
                }
            }
        }
        stage('deploy') {
            steps {
                container('tools') {
                    sh "sed -i 's#{{IMAGE_URL}}#${IMAGE_REPO}:${GIT_COMMIT}#g' deploy/*"
                    timeout(time: 1, unit: 'MINUTES') {
                        sh "kubectl apply -f deploy/"
                    }
                }
                updateGitlabCommitStatus(name: env.STAGE_NAME, state: 'success')
                script{
                    env.BUILD_TASKS += env.STAGE_NAME + "√..." + env.TAB_STR
                }
            }
        }
    }
    post {
        success {
            echo 'Congratulations!'
            sh """
                curl 'https://oapi.dingtalk.com/robot/send?access_token=${DINGTALK_CREDS_PSW}' \
                    -H 'Content-Type: application/json' \
                    -d '{
                        "msgtype": "markdown",
                        "markdown": {
                            "title":"myblog",
                            "text": "😄👍 构建成功 👍😄  \n**项目名称**：luffy  \n**Git log**: ${GIT_LOG}   \n**构建分支**: ${BRANCH_NAME}   \n**构建地址**：${RUN_DISPLAY_URL}  \n**构建任务**：${BUILD_TASKS}"
                        }
                    }'
            """
        }
        failure {
            echo 'Oh no!'
            sh """
                curl 'https://oapi.dingtalk.com/robot/send?access_token=${DINGTALK_CREDS_PSW}' \
                    -H 'Content-Type: application/json' \
                    -d '{
                        "msgtype": "markdown",
                        "markdown": {
                            "title":"myblog",
                            "text": "😖❌ 构建失败 ❌😖  \n**项目名称**：luffy  \n**Git log**: ${GIT_LOG}   \n**构建分支**: ${BRANCH_NAME}  \n**构建地址**：${RUN_DISPLAY_URL}  \n**构建任务**：${BUILD_TASKS}"
                        }
                    }'
            """
        }
        always {
            echo 'I will always say Hello again!'
        }
    }
}

apiVersion: v1
kind: Service
metadata:
  name: sonarqube
  namespace: jenkins
  labels:
    app: sonarqube
spec:
  ports:
  - name: sonarqube
    port: 9000
    targetPort: 9000
    protocol: TCP
  selector:
    app: sonarqube
---
apiVersion: apps/v1
kind: Deployment
metadata:
  namespace: jenkins
  name: sonarqube
  labels:
    app: sonarqube
spec:
  replicas: 1
  selector:
    matchLabels:
      app: sonarqube
  template:
    metadata:
      labels:
        app: sonarqube
    spec:
      nodeSelector:
        sonar: "true"
      initContainers:
      - command:
        - /sbin/sysctl
        - -w
        - vm.max_map_count=262144
        image: alpine:3.6
        imagePullPolicy: IfNotPresent
        name: elasticsearch-logging-init
        resources: {}
        securityContext:
          privileged: true
      containers:
      - name: sonarqube
        image: 172.21.51.67:5000/sonarqube:7.9-community
        ports:
        - containerPort: 9000
        env:
        - name: SONARQUBE_JDBC_USERNAME
          valueFrom:
            secretKeyRef:
              name: gitlab-secret
              key: postgres.user.root
        - name: SONARQUBE_JDBC_PASSWORD
          valueFrom:
            secretKeyRef:
              name: gitlab-secret
              key: postgres.pwd.root
        - name: SONARQUBE_JDBC_URL
          value: "jdbc:postgresql://postgres:5432/sonar"
        livenessProbe:
          httpGet:
            path: /sessions/new
            port: 9000
          initialDelaySeconds: 60
          periodSeconds: 30
        readinessProbe:
          httpGet:
            path: /sessions/new
            port: 9000
          initialDelaySeconds: 60
          periodSeconds: 30
          failureThreshold: 6
        resources:
          limits:
            cpu: 2000m
            memory: 4096Mi
          requests:
            cpu: 300m
            memory: 512Mi
---
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: sonarqube
  namespace: jenkins
spec:
  rules:
  - host: sonar.luffy.com
    http:
      paths:
      - backend:
          serviceName: sonarqube
          servicePort: 9000
        path: /
status:
  loadBalancer: {}

   $ docker build . -t 172.21.51.67:5000/devops/tools:v2
   $ docker push 172.21.51.67:5000/devops/tools:v2


pipeline {
    agent { label 'jnlp-slave'}

    options {
		buildDiscarder(logRotator(numToKeepStr: '10'))
		disableConcurrentBuilds()
		timeout(time: 20, unit: 'MINUTES')
		gitLabConnection('gitlab')
	}

    environment {
        IMAGE_REPO = "172.21.51.67:5000/myblog"
        DINGTALK_CREDS = credentials('dingTalk')
        TAB_STR = "\n                    \n                    "
    }

    stages {
        stage('git-log') {
            steps {
                script{
                    sh "git log --oneline -n 1 > gitlog.file"
                    env.GIT_LOG = readFile("gitlog.file").trim()
                }
                sh 'printenv'
            }
        }
        stage('checkout') {
            steps {
                container('tools') {
                    checkout scm
                }
                updateGitlabCommitStatus(name: env.STAGE_NAME, state: 'success')
                script{
                    env.BUILD_TASKS = env.STAGE_NAME + "√..." + env.TAB_STR
                }
            }
        }
        stage('CI'){
            failFast true
            parallel {
                stage('Unit Test') {
                    steps {
                        echo "Unit Test Stage Skip..."
                    }
                }
                stage('Code Scan') {
                    steps {
                        container('tools') {
                            withSonarQubeEnv('sonarqube') {
                                sh 'sonar-scanner -X'
                                sleep 3
                            }
                            script {
                                timeout(1) {
                                    def qg = waitForQualityGate('sonarqube')
                                    if (qg.status != 'OK') {
                                        error "未通过Sonarqube的代码质量阈检查，请及时修改！failure: ${qg.status}"
                                    }
                                }
                            }
                        }
                    }
                }
            }
        }
        stage('build-image') {
            steps {
                container('tools') {
                    retry(2) { sh 'docker build . -t ${IMAGE_REPO}:${GIT_COMMIT}'}
                }
                updateGitlabCommitStatus(name: env.STAGE_NAME, state: 'success')
                script{
                    env.BUILD_TASKS += env.STAGE_NAME + "√..." + env.TAB_STR
                }
            }
        }
        stage('push-image') {
            steps {
                container('tools') {
                    retry(2) { sh 'docker push ${IMAGE_REPO}:${GIT_COMMIT}'}
                }
                updateGitlabCommitStatus(name: env.STAGE_NAME, state: 'success')
                script{
                    env.BUILD_TASKS += env.STAGE_NAME + "√..." + env.TAB_STR
                }
            }
        }
        stage('deploy') {
            steps {
                container('tools') {
                    sh "sed -i 's#{{IMAGE_URL}}#${IMAGE_REPO}:${GIT_COMMIT}#g' deploy/*"
                    timeout(time: 1, unit: 'MINUTES') {
                        sh "kubectl apply -f deploy/"
                    }
                }
                updateGitlabCommitStatus(name: env.STAGE_NAME, state: 'success')
                script{
                    env.BUILD_TASKS += env.STAGE_NAME + "√..." + env.TAB_STR
                }
            }
        }
    }
    post {
        success {
            echo 'Congratulations!'
            sh """
                curl 'https://oapi.dingtalk.com/robot/send?access_token=${DINGTALK_CREDS_PSW}' \
                    -H 'Content-Type: application/json' \
                    -d '{
                        "msgtype": "markdown",
                        "markdown": {
                            "title":"myblog",
                            "text": "😄👍 构建成功 👍😄  \n**项目名称**：luffy  \n**Git log**: ${GIT_LOG}   \n**构建分支**: ${BRANCH_NAME}   \n**构建地址**：${RUN_DISPLAY_URL}  \n**构建任务**：${BUILD_TASKS}"
                        }
                    }'
            """
        }
        failure {
            echo 'Oh no!'
            sh """
                curl 'https://oapi.dingtalk.com/robot/send?access_token=${DINGTALK_CREDS_PSW}' \
                    -H 'Content-Type: application/json' \
                    -d '{
                        "msgtype": "markdown",
                        "markdown": {
                            "title":"myblog",
                            "text": "😖❌ 构建失败 ❌😖  \n**项目名称**：luffy  \n**Git log**: ${GIT_LOG}   \n**构建分支**: ${BRANCH_NAME}  \n**构建地址**：${RUN_DISPLAY_URL}  \n**构建任务**：${BUILD_TASKS}"
                        }
                    }'
            """
        }
        always {
            echo 'I will always say Hello again!'
        }
    }
}

*** Settings ***
Library           RequestsLibrary
Library           SeleniumLibrary

*** Variables ***
${demo_url}       http://myblog.luffy/admin

*** Test Cases ***
api
    [Tags]  critical
    Create Session    api    ${demo_url}
    ${alarm_system_info}    RequestsLibrary.Get Request    api    /
    log    ${alarm_system_info.status_code}
    log    ${alarm_system_info.content}
    should be true    ${alarm_system_info.status_code} == 200

ui
    [Tags]  critical
    ${chrome_options} =     Evaluate    sys.modules['selenium.webdriver'].ChromeOptions()    sys, selenium.webdriver
    Call Method    ${chrome_options}   add_argument    headless
    Call Method    ${chrome_options}   add_argument    no-sandbox
    ${options}=     Call Method     ${chrome_options}    to_capabilities
    Open Browser    ${demo_url}/    browser=chrome       desired_capabilities=${options}
    sleep    2s
    Capture Page Screenshot
    Page Should Contain    Django
    close browser

# 使用tools镜像启动容器，来验证手动使用robotframework来做验收测试
$ docker run --rm -ti 172.21.51.67:5000/devops/tools:v2 bash
bash-5.0# apk add chromium chromium-chromedriver
$ cat requirements.txt
robotframework
robotframework-seleniumlibrary
robotframework-databaselibrary
robotframework-requests

#pip安装必要的软件包
$ pip install -i http://mirrors.aliyun.com/pypi/simple/ --trusted-host mirrors.aliyun.com -r requirements.txt

#使用robot命令做测试
$ robot -d artifacts/ robot.txt

FROM alpine
LABEL maintainer="inspur_lyx@hotmail.com"
USER root

RUN sed -i 's/dl-cdn.alpinelinux.org/mirrors.tuna.tsinghua.edu.cn/g' /etc/apk/repositories && \
    apk update && \
    apk add  --no-cache openrc docker git curl tar gcc g++ make \
    bash shadow openjdk8 python2 python2-dev py-pip python3-dev openssl-dev libffi-dev \
    libstdc++ harfbuzz nss freetype ttf-freefont chromium chromium-chromedriver && \
    mkdir -p /root/.kube && \
    usermod -a -G docker root


COPY config /root/.kube/

COPY requirements.txt /

RUN pip install -i http://mirrors.aliyun.com/pypi/simple/ --trusted-host mirrors.aliyun.com -r requirements.txt


RUN rm -rf /var/cache/apk/* && \
    rm -rf ~/.cache/pip

#-----------------安装 kubectl--------------------#
COPY kubectl /usr/local/bin/
RUN chmod +x /usr/local/bin/kubectl
# ------------------------------------------------#

#---------------安装 sonar-scanner-----------------#
COPY sonar-scanner /usr/lib/sonar-scanner
RUN ln -s /usr/lib/sonar-scanner/bin/sonar-scanner /usr/local/bin/sonar-scanner && chmod +x /usr/local/bin/sonar-scanner
ENV SONAR_RUNNER_HOME=/usr/lib/sonar-scanner
# ------------------------------------------------#

$ docker build . -t 172.21.51.67:5000/devops/tools:v3

$ docker push 172.21.51.67:5000/devops/tools:v3

pipeline {
    agent { label 'jnlp-slave'}

    options {
		buildDiscarder(logRotator(numToKeepStr: '10'))
		disableConcurrentBuilds()
		timeout(time: 20, unit: 'MINUTES')
		gitLabConnection('gitlab')
	}

    environment {
        IMAGE_REPO = "172.21.51.67:5000/myblog"
        DINGTALK_CREDS = credentials('dingTalk')
        TAB_STR = "\n                    \n                    "
    }

    stages {
        stage('git-log') {
            steps {
                script{
                    sh "git log --oneline -n 1 > gitlog.file"
                    env.GIT_LOG = readFile("gitlog.file").trim()
                }
                sh 'printenv'
            }
        }
        stage('checkout') {
            steps {
                container('tools') {
                    checkout scm
                }

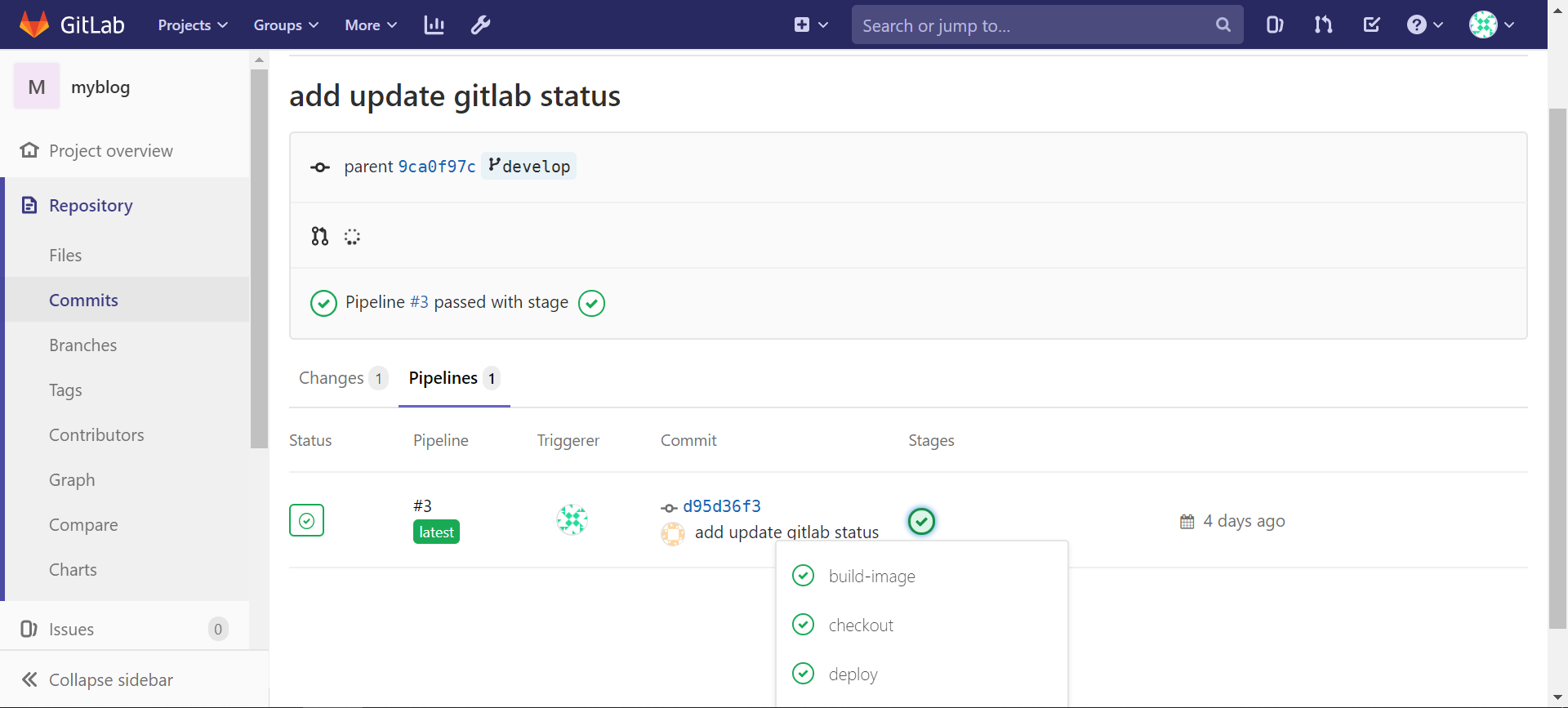

                updateGitlabCommitStatus(name: env.STAGE_NAME, state: 'success')
                script{
                    env.BUILD_TASKS = env.STAGE_NAME + "√..." + env.TAB_STR
                }
            }
        }
        stage('CI'){
            failFast true
            parallel {
                stage('Unit Test') {
                    steps {
                        echo "Unit Test Stage Skip..."
                    }
                }
                stage('Code Scan') {
                    steps {
                        container('tools') {
                            withSonarQubeEnv('sonarqube') {
                                sh 'sonar-scanner -X'
                                sleep 3
                            }
                            script {
                                timeout(1) {
                                    def qg = waitForQualityGate('sonarqube')
                                    if (qg.status != 'OK') {
                                        error "未通过Sonarqube的代码质量阈检查，请及时修改！failure: ${qg.status}"
                                    }
                                }
                            }
                        }
                    }
                }
            }
        }
        stage('build-image') {
            steps {
                container('tools') {
                    retry(2) { sh 'docker build . -t ${IMAGE_REPO}:${GIT_COMMIT}'}
                }
                updateGitlabCommitStatus(name: env.STAGE_NAME, state: 'success')
                script{
                    env.BUILD_TASKS += env.STAGE_NAME + "√..." + env.TAB_STR
                }
            }
        }
        stage('push-image') {
            steps {
                container('tools') {
                    retry(2) { sh 'docker push ${IMAGE_REPO}:${GIT_COMMIT}'}
                }
                updateGitlabCommitStatus(name: env.STAGE_NAME, state: 'success')
                script{
                    env.BUILD_TASKS += env.STAGE_NAME + "√..." + env.TAB_STR
                }
            }
        }
        stage('deploy') {
            steps {
                container('tools') {
                    sh "sed -i 's#{{IMAGE_URL}}#${IMAGE_REPO}:${GIT_COMMIT}#g' deploy/*"
                    timeout(time: 1, unit: 'MINUTES') {
                        sh "kubectl apply -f deploy/;sleep 20;"
                    }
                }
                updateGitlabCommitStatus(name: env.STAGE_NAME, state: 'success')
                script{
                    env.BUILD_TASKS += env.STAGE_NAME + "√..." + env.TAB_STR
                }
            }
        }
        stage('Accept Test') {
            steps {
                    container('tools') {
                        sh 'robot -i critical  -d artifacts/ robot.txt|| echo ok'
                        echo "R ${currentBuild.result}"
                        step([
                            $class : 'RobotPublisher',
                            outputPath: 'artifacts/',
                            outputFileName : "output.xml",
                            disableArchiveOutput : false,
                            passThreshold : 80,
                            unstableThreshold: 20.0,
                            onlyCritical : true,
                            otherFiles : "*.png"
                        ])
                        echo "R ${currentBuild.result}"
                        archiveArtifacts artifacts: 'artifacts/*', fingerprint: true
                    }
            }
        }
    }
    post {
        success {
            echo 'Congratulations!'
            sh """
                curl 'https://oapi.dingtalk.com/robot/send?access_token=${DINGTALK_CREDS_PSW}' \
                    -H 'Content-Type: application/json' \
                    -d '{
                        "msgtype": "markdown",
                        "markdown": {
                            "title":"myblog",
                            "text": "😄👍 构建成功 👍😄  \n**项目名称**：luffy  \n**Git log**: ${GIT_LOG}   \n**构建分支**: ${BRANCH_NAME}   \n**构建地址**：${RUN_DISPLAY_URL}  \n**构建任务**：${BUILD_TASKS}"
                        }
                    }'
            """
        }
        failure {
            echo 'Oh no!'
            sh """
                curl 'https://oapi.dingtalk.com/robot/send?access_token=${DINGTALK_CREDS_PSW}' \
                    -H 'Content-Type: application/json' \
                    -d '{
                        "msgtype": "markdown",
                        "markdown": {
                            "title":"myblog",
                            "text": "😖❌ 构建失败 ❌😖  \n**项目名称**：luffy  \n**Git log**: ${GIT_LOG}   \n**构建分支**: ${BRANCH_NAME}  \n**构建地址**：${RUN_DISPLAY_URL}  \n**构建任务**：${BUILD_TASKS}"
                        }
                    }'
            """
        }
        always {
            echo 'I will always say Hello again!'
        }
    }
}
