Kubernetes落地实践之旅

## etcd、apiserver、controller-manager、kube-scheduler
$ kubectl -n kube-system get po

$ systemctl status kubelet

$ kubectl api-resources

$ kubectl get namespaces
NAME                   STATUS   AGE
default                Active   84m
kube-node-lease        Active   84m
kube-public            Active   84m
kube-system            Active   84m
kubernetes-dashboard   Active   71m

$ kubectl -h
$ kubectl get -h
$ kubectl create -h
$ kubectl create namespace -h

apiVersion: v1
kind: Pod
metadata:
  name: myblog
  namespace: luffy
  labels:
    component: myblog
spec:
  containers:
  - name: myblog
    image: 172.21.51.67:5000/myblog:v1
    env:
    - name: MYSQL_HOST   #  指定root用户的用户名
      value: "127.0.0.1"
    - name: MYSQL_PASSWD
      value: "123456"
    ports:
    - containerPort: 8002
  - name: mysql
    image: 172.21.51.67:5000/mysql:5.7-utf8
    ports:
    - containerPort: 3306
    env:
    - name: MYSQL_ROOT_PASSWORD
      value: "123456"
    - name: MYSQL_DATABASE
      value: "myblog"

{
	"apiVersion": "v1",
	"kind": "Pod",
	"metadata": {
		"name": "myblog",
        "namespace": "luffy",
        "labels": {
            "component": "myblog"
        }
	},
	"spec": {
		"containers": [
			{
				"name": "myblog",
				"image": "172.21.51.67:5000/myblog",
                "env": [
                    {
                        "name": "MYSQL_HOST",
                        "value": "127.0.0.1"
                    },
                    {
                        "name": "MYSQL_PASSWD",
                        "value": "123456"
                    }
                ],
				"ports": [
					{
						"containerPort": 8002
					}
				]
			},
    		{
    			"name": "mysql",
                ...
			}
		]
	}
}

$ kubectl explain pod
$ kubectl explain Pod.apiVersion

## 创建namespace, namespace是逻辑上的资源池
$ kubectl create namespace luffy

## 使用指定文件创建Pod
$ kubectl create -f pod.yaml

## 查看pod，可以简写po
## 所有的操作都需要指定namespace，如果是在default命名空间下，则可以省略
$ kubectl -n luffy get pods -o wide
NAME     READY   STATUS    RESTARTS   AGE    IP             NODE
myblog   2/2     Running   0          3m     10.244.1.146   k8s-slave1

## 使用Pod Ip访问服务,3306和8002
$ curl 10.244.1.146:8002/blog/index/

## 进入容器,执行初始化, 不必到对应的主机执行docker exec
$ kubectl -n luffy exec -ti myblog -c myblog bash
/ # env
/ # python3 manage.py migrate
$ kubectl -n luffy exec -ti myblog -c mysql bash
/ # mysql -p123456

## 再次访问服务,3306和8002
$ curl 10.244.1.146:8002/blog/index/

$ docker ps -a |grep myblog  ## 发现有三个容器
## 其中包含mysql和myblog程序以及Infra容器
## 为了实现Pod内部的容器可以通过localhost通信，每个Pod都会启动Infra容器，然后Pod内部的其他容器的网络空间会共享该Infra容器的网络空间(Docker网络的container模式)，Infra容器只需要hang住网络空间，不需要额外的功能，因此资源消耗极低。

## 登录master节点，查看pod内部的容器ip均相同，为pod ip
$ kubectl -n luffy exec -ti myblog -c myblog bash
/ # ifconfig
$ kubectl -n luffy exec -ti myblog -c mysql bash
/ # ifconfig

## 查看pod调度节点及pod_ip
$ kubectl -n luffy get pods -o wide
## 查看完整的yaml
$ kubectl -n luffy get po myblog -o yaml
## 查看pod的明细信息及事件
$ kubectl -n luffy describe pod myblog

#进入Pod内的容器
$ kubectl -n <namespace> exec <pod_name> -c <container_name> -ti /bin/sh

#查看Pod内容器日志,显示标准或者错误输出日志
$ kubectl -n <namespace> logs -f <pod_name> -c <container_name>

$ kubectl apply -f demo-pod.yaml

#根据文件删除
$ kubectl delete -f demo-pod.yaml

#根据pod_name删除
$ kubectl -n <namespace> delete pod <pod_name>

  containers:
  - name: myblog
    image: 172.21.51.67:5000/myblog:v1
    env:
    - name: MYSQL_HOST   #  指定root用户的用户名
      value: "127.0.0.1"
    - name: MYSQL_PASSWD
      value: "123456"
    ports:
    - containerPort: 8002

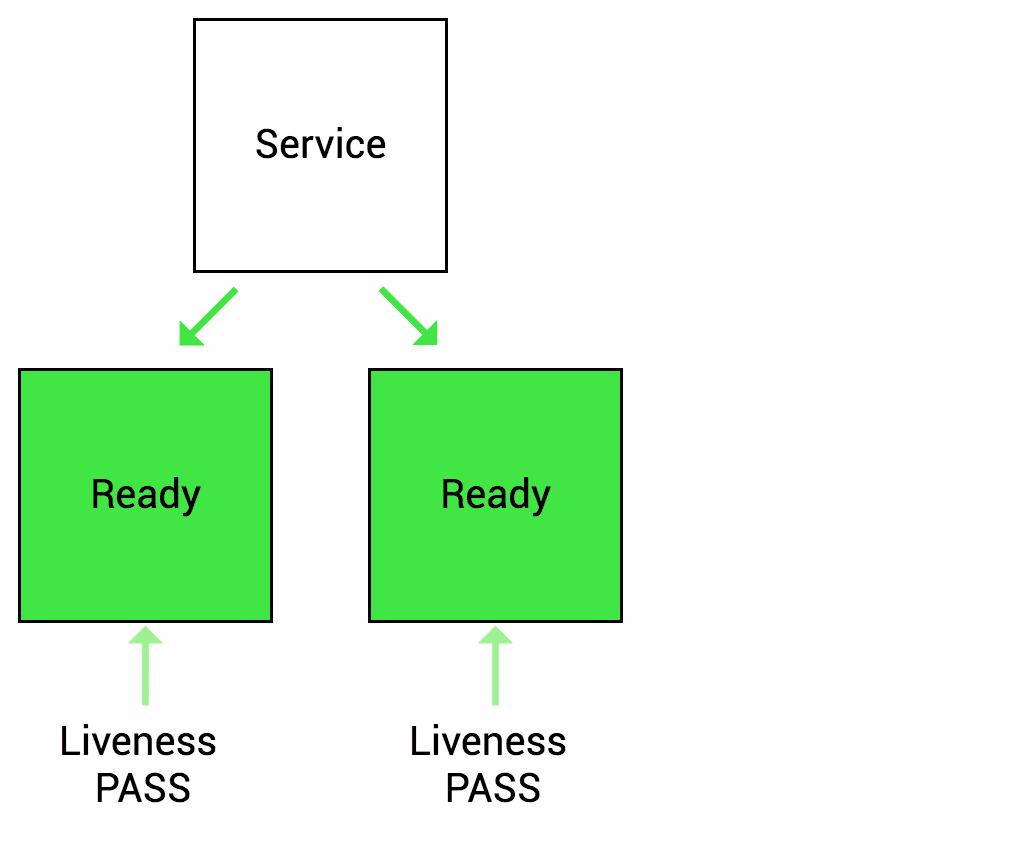

    livenessProbe:
      httpGet:
        path: /blog/index/
        port: 8002
        scheme: HTTP
      initialDelaySeconds: 10  # 容器启动后第一次执行探测是需要等待多少秒
      periodSeconds: 10 	# 执行探测的频率
      timeoutSeconds: 2		# 探测超时时间

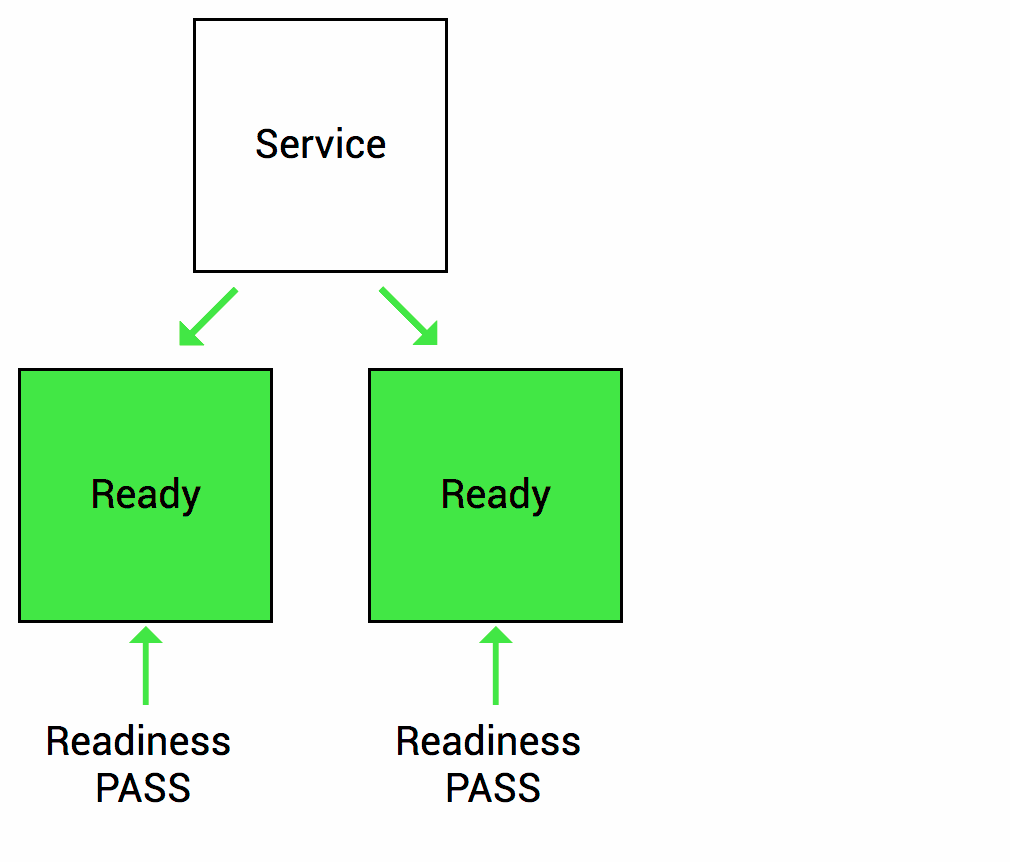

    readinessProbe:
      httpGet:
        path: /blog/index/
        port: 8002
        scheme: HTTP
      initialDelaySeconds: 10
      timeoutSeconds: 2
      periodSeconds: 10

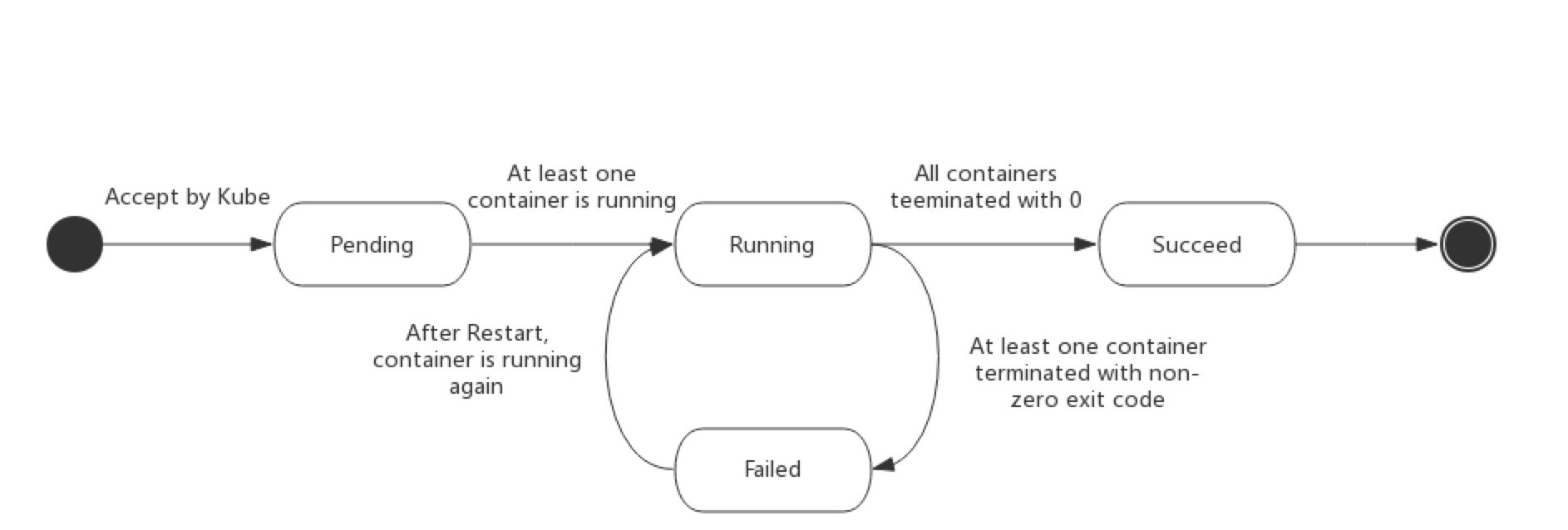

apiVersion: v1
kind: Pod
metadata:
  name: test-restart-policy
spec:
  restartPolicy: OnFailure
  containers:
  - name: busybox
    image: busybox
    args:
    - /bin/sh
    - -c
    - sleep 10 && exit 0

spec:
  containers:
  - name: myblog
    image: 172.21.51.67:5000/demo/myblog
    imagePullPolicy: IfNotPresent

...
  containers:
  - name: myblog
    image: 172.21.51.67:5000/myblog
    env:
    - name: MYSQL_HOST   #  指定root用户的用户名
      value: "127.0.0.1"
    - name: MYSQL_PASSWD
      value: "123456"
    ports:
    - containerPort: 8002
    resources:
      requests:
        memory: 100Mi
        cpu: 50m
      limits:
        memory: 500Mi
        cpu: 100m
...

1 CPU =  1000 millicpu（1 Core = 1000m）

docker run -it --cpu-period=50000 --cpu-quota=25000 ubuntu:16.04 /bin/bash

apiVersion: v1
kind: Pod
metadata:
  name: myblog
  namespace: luffy
  labels:
    component: myblog
spec:
  volumes:
  - name: mysql-data
    hostPath:
      path: /opt/mysql/data
  nodeSelector:   # 使用节点选择器将Pod调度到指定label的节点
    component: mysql
  containers:
  - name: myblog
    image: 172.21.51.67:5000/myblog:v1
    env:
    - name: MYSQL_HOST   #  指定root用户的用户名
      value: "127.0.0.1"
    - name: MYSQL_PASSWD
      value: "123456"
    ports:
    - containerPort: 8002
    resources:
      requests:
        memory: 100Mi
        cpu: 50m
      limits:
        memory: 500Mi
        cpu: 100m
    livenessProbe:
      httpGet:
        path: /blog/index/
        port: 8002
        scheme: HTTP
      initialDelaySeconds: 10  # 容器启动后第一次执行探测是需要等待多少秒
      periodSeconds: 15 	# 执行探测的频率
      timeoutSeconds: 2		# 探测超时时间
    readinessProbe:
      httpGet:
        path: /blog/index/
        port: 8002
        scheme: HTTP
      initialDelaySeconds: 10
      timeoutSeconds: 2
      periodSeconds: 15
  - name: mysql
    image: 172.21.51.67:5000/mysql:5.7-utf8
    ports:
    - containerPort: 3306
    env:
    - name: MYSQL_ROOT_PASSWORD
      value: "123456"
    - name: MYSQL_DATABASE
      value: "myblog"
    resources:
      requests:
        memory: 100Mi
        cpu: 50m
      limits:
        memory: 500Mi
        cpu: 100m
    readinessProbe:
      tcpSocket:
        port: 3306
      initialDelaySeconds: 5
      periodSeconds: 10
    livenessProbe:
      tcpSocket:
        port: 3306
      initialDelaySeconds: 15
      periodSeconds: 20
    volumeMounts:
    - name: mysql-data
      mountPath: /var/lib/mysql

apiVersion: v1
kind: Pod
metadata:
  name: mysql
  namespace: luffy
  labels:
    component: mysql
spec:
  hostNetwork: true	# 声明pod的网络模式为host模式，效果同docker run --net=host
  volumes:
  - name: mysql-data
    hostPath:
      path: /opt/mysql/data
  nodeSelector:   # 使用节点选择器将Pod调度到指定label的节点
    component: mysql
  containers:
  - name: mysql
    image: 172.21.51.67:5000/mysql:5.7-utf8
    ports:
    - containerPort: 3306
    env:
    - name: MYSQL_ROOT_PASSWORD
      value: "123456"
    - name: MYSQL_DATABASE
      value: "myblog"
    resources:
      requests:
        memory: 100Mi
        cpu: 50m
      limits:
        memory: 500Mi
        cpu: 100m
    readinessProbe:
      tcpSocket:
        port: 3306
      initialDelaySeconds: 5
      periodSeconds: 10
    livenessProbe:
      tcpSocket:
        port: 3306
      initialDelaySeconds: 15
      periodSeconds: 20
    volumeMounts:
    - name: mysql-data
      mountPath: /var/lib/mysql

apiVersion: v1
kind: Pod
metadata:
  name: myblog
  namespace: luffy
  labels:
    component: myblog
spec:
  containers:
  - name: myblog
    image: 172.21.51.67:5000/myblog:v1
    imagePullPolicy: IfNotPresent
    env:
    - name: MYSQL_HOST   #  指定root用户的用户名
      value: "172.21.51.68"
    - name: MYSQL_PASSWD
      value: "123456"
    ports:
    - containerPort: 8002
    resources:
      requests:
        memory: 100Mi
        cpu: 50m
      limits:
        memory: 500Mi
        cpu: 100m
    livenessProbe:
      httpGet:
        path: /blog/index/
        port: 8002
        scheme: HTTP
      initialDelaySeconds: 10  # 容器启动后第一次执行探测是需要等待多少秒
      periodSeconds: 15 	# 执行探测的频率
      timeoutSeconds: 2		# 探测超时时间
    readinessProbe:
      httpGet:
        path: /blog/index/
        port: 8002
        scheme: HTTP
      initialDelaySeconds: 10
      timeoutSeconds: 2
      periodSeconds: 15

## 先删除旧pod
$ kubectl -n luffy delete po myblog

## 分别创建mysql和myblog
$ kubectl create -f mysql.yaml
$ kubectl create -f myblog.yaml

## 查看pod，注意mysqlIP为宿主机IP，因为网络模式为host
$ kubectl -n luffy get po -o wide
NAME     READY   STATUS    RESTARTS   AGE   IP                NODE
myblog   1/1     Running   0          41s   10.244.1.152      k8s-slave1
mysql    1/1     Running   0          52s   172.21.51.68   k8s-slave1

## 访问myblog服务正常
$ curl 10.244.1.152:8002/blog/index/

...
spec:
  containers:
  - name: mysql
    image: 172.21.51.67:5000/mysql:5.7-utf8
    env:
    - name: MYSQL_USER
      valueFrom:
        secretKeyRef:
          name: myblog
          key: MYSQL_USER
    - name: MYSQL_ROOT_PASSWORD
      valueFrom:
        secretKeyRef:
          name: myblog
          key: MYSQL_PASSWD
    - name: MYSQL_DATABASE
      value: "myblog"
...

apiVersion: v1
kind: Pod
metadata:
  name: myblog
  namespace: luffy
  labels:
    component: myblog
spec:
  containers:
  - name: myblog
    image: 172.21.51.67:5000/myblog:v1
    imagePullPolicy: IfNotPresent

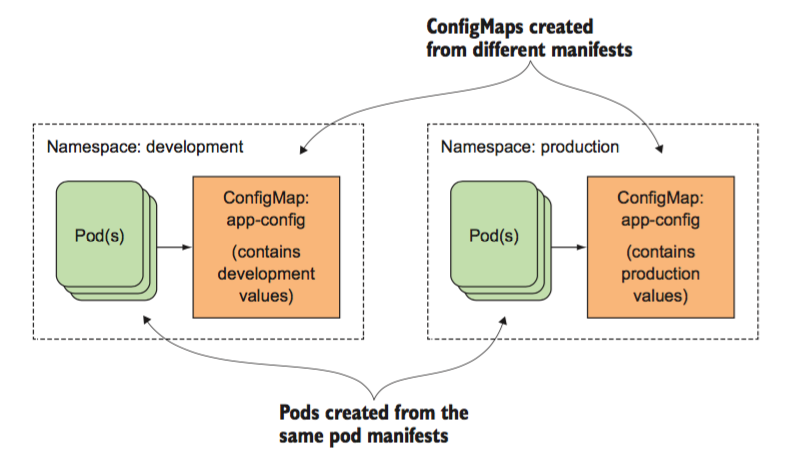

    env:
    - name: MYSQL_HOST
      valueFrom:
        configMapKeyRef:
          name: myblog
          key: MYSQL_HOST
    - name: MYSQL_PORT
      valueFrom:
        configMapKeyRef:
          name: myblog
          key: MYSQL_PORT
    - name: MYSQL_USER
      valueFrom:
        secretKeyRef:
          name: myblog
          key: MYSQL_USER
    - name: MYSQL_PASSWD
      valueFrom:
        secretKeyRef:
          name: myblog
          key: MYSQL_PASSWD
    ports:
    - containerPort: 8002
    resources:
      requests:
        memory: 100Mi
        cpu: 50m
      limits:
        memory: 500Mi
        cpu: 100m
    livenessProbe:
      httpGet:
        path: /blog/index/
        port: 8002
        scheme: HTTP
      initialDelaySeconds: 10  # 容器启动后第一次执行探测是需要等待多少秒
      periodSeconds: 15 	# 执行探测的频率
      timeoutSeconds: 2		# 探测超时时间
    readinessProbe:
      httpGet:
        path: /blog/index/
        port: 8002
        scheme: HTTP
      initialDelaySeconds: 10
      timeoutSeconds: 2
      periodSeconds: 15

...
      initContainers:
      - command:
        - /sbin/sysctl
        - -w
        - vm.max_map_count=262144
        image: alpine:3.6
        imagePullPolicy: IfNotPresent
        name: elasticsearch-logging-init
        resources: {}
        securityContext:
          privileged: true
      - name: fix-permissions
        image: alpine:3.6
        command: ["sh", "-c", "chown -R 1000:1000 /usr/share/elasticsearch/data"]
        securityContext:
          privileged: true
        volumeMounts:
        - name: elasticsearch-logging
          mountPath: /usr/share/elasticsearch/data
...

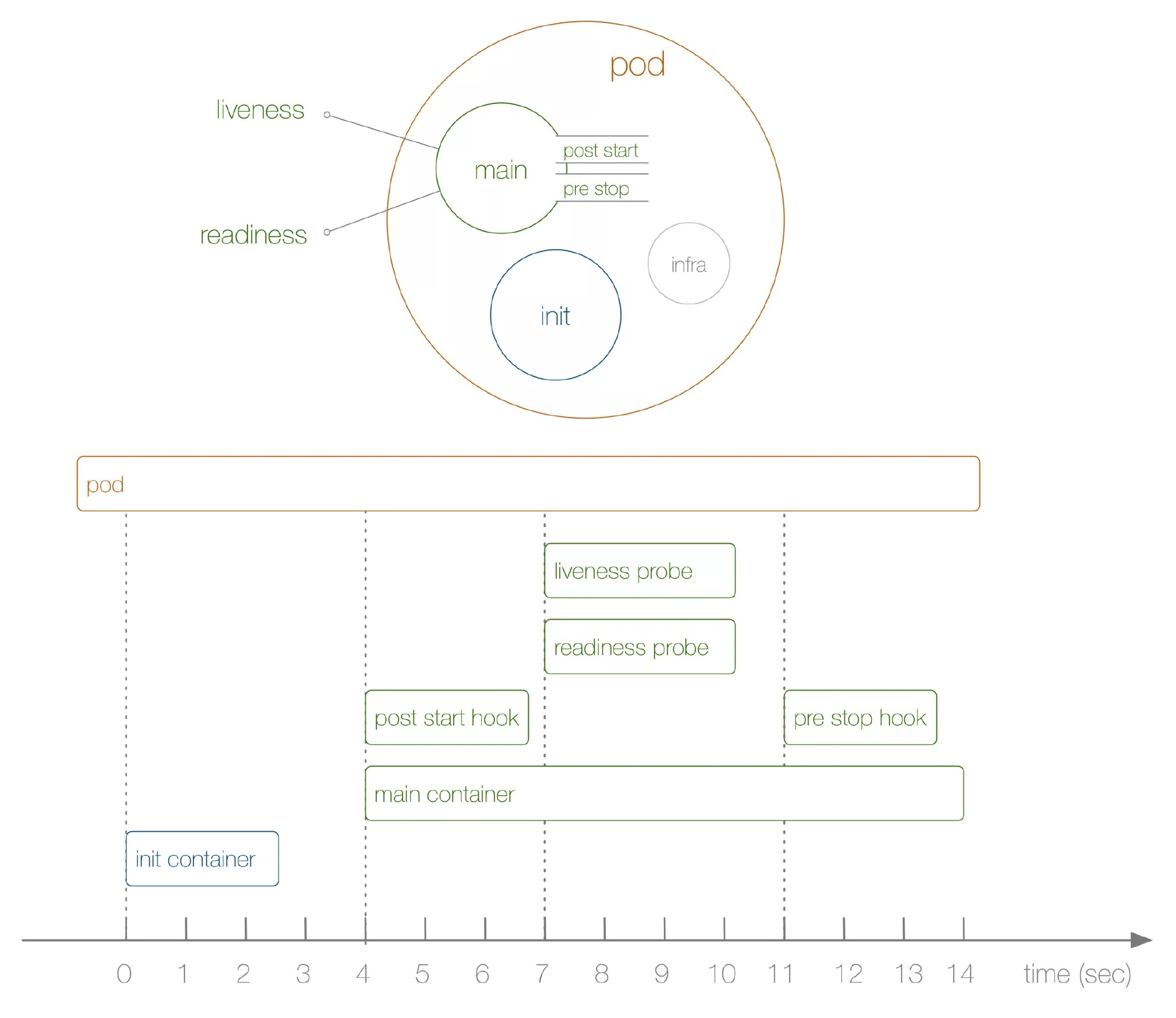

apiVersion: v1
kind: Pod
metadata:
  name: demo-start-stop
  namespace: luffy
  labels:
    component: demo-start-stop
spec:
  initContainers:
  - name: init
    image: busybox
    command: ['sh', '-c', 'echo $(date +%s): INIT >> /loap/timing']
    volumeMounts:
    - mountPath: /loap
      name: timing
  containers:
  - name: main
    image: busybox
    command: ['sh', '-c', 'echo $(date +%s): START >> /loap/timing;
sleep 10; echo $(date +%s): END >> /loap/timing;']
    volumeMounts:
    - mountPath: /loap
      name: timing
    livenessProbe:
      exec:
        command: ['sh', '-c', 'echo $(date +%s): LIVENESS >> /loap/timing']
    readinessProbe:
      exec:
        command: ['sh', '-c', 'echo $(date +%s): READINESS >> /loap/timing']
    lifecycle:
      postStart:
        exec:
          command: ['sh', '-c', 'echo $(date +%s): POST-START >> /loap/timing']
      preStop:
        exec:
          command: ['sh', '-c', 'echo $(date +%s): PRE-STOP >> /loap/timing']
  volumes:
  - name: timing
    hostPath:
      path: /tmp/loap

$ kubectl create -f demo-pod-start.yaml

## 查看demo状态
$ kubectl -n luffy get po -o wide -w

## 查看调度节点的/tmp/loap/timing
$ cat /tmp/loap/timing
1585424708: INIT
1585424746: START
1585424746: POST-START
1585424754: READINESS
1585424756: LIVENESS
1585424756: END

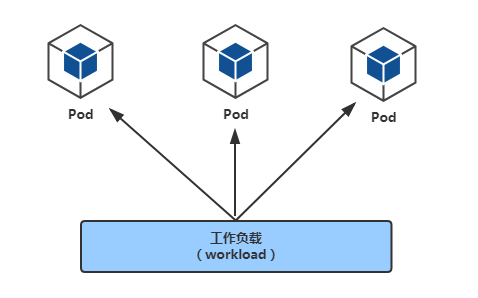

apiVersion: apps/v1
kind: Deployment
metadata:
  name: mysql
  namespace: luffy
spec:
  replicas: 1	#指定Pod副本数
  selector:		#指定Pod的选择器
    matchLabels:
      app: mysql
  template:
    metadata:
      labels:	#给Pod打label
        app: mysql
    spec:
      volumes:
      - name: mysql-data
        hostPath:
          path: /opt/mysql/data
      nodeSelector:   # 使用节点选择器将Pod调度到指定label的节点
        component: mysql
      containers:
      - name: mysql
        image: 172.21.51.67:5000/mysql:5.7-utf8
        ports:
        - containerPort: 3306
        env:
        - name: MYSQL_USER
          valueFrom:
            secretKeyRef:
              name: myblog
              key: MYSQL_USER
        - name: MYSQL_ROOT_PASSWORD
          valueFrom:
            secretKeyRef:
              name: myblog
              key: MYSQL_PASSWD
        - name: MYSQL_DATABASE
          value: "myblog"
        resources:
          requests:
            memory: 100Mi
            cpu: 50m
          limits:
            memory: 500Mi
            cpu: 100m
        readinessProbe:
          tcpSocket:
            port: 3306
          initialDelaySeconds: 5
          periodSeconds: 10
        livenessProbe:
          tcpSocket:
            port: 3306
          initialDelaySeconds: 15
          periodSeconds: 20
        volumeMounts:
        - name: mysql-data
          mountPath: /var/lib/mysql

apiVersion: apps/v1
kind: Deployment
metadata:
  name: myblog
  namespace: luffy
spec:
  replicas: 1	#指定Pod副本数
  selector:		#指定Pod的选择器
    matchLabels:
      app: myblog
  template:
    metadata:
      labels:	#给Pod打label
        app: myblog
    spec:
      containers:
      - name: myblog
        image: 172.21.51.67:5000/myblog:v1
        imagePullPolicy: IfNotPresent
        env:
        - name: MYSQL_HOST
          valueFrom:
            configMapKeyRef:
              name: myblog
              key: MYSQL_HOST
        - name: MYSQL_PORT
          valueFrom:
            configMapKeyRef:
              name: myblog
              key: MYSQL_PORT
        - name: MYSQL_USER
          valueFrom:
            secretKeyRef:
              name: myblog
              key: MYSQL_USER
        - name: MYSQL_PASSWD
          valueFrom:
            secretKeyRef:
              name: myblog
              key: MYSQL_PASSWD
        ports:
        - containerPort: 8002
        resources:
          requests:
            memory: 100Mi
            cpu: 50m
          limits:
            memory: 500Mi
            cpu: 100m
        livenessProbe:
          httpGet:
            path: /blog/index/
            port: 8002
            scheme: HTTP
          initialDelaySeconds: 10  # 容器启动后第一次执行探测是需要等待多少秒
          periodSeconds: 15 	# 执行探测的频率
          timeoutSeconds: 2		# 探测超时时间
        readinessProbe:
          httpGet:
            path: /blog/index/
            port: 8002
            scheme: HTTP
          initialDelaySeconds: 10
          timeoutSeconds: 2
          periodSeconds: 15

$ kubectl create -f deploy.yaml

# kubectl api-resources
$ kubectl -n luffy get deploy
NAME     READY   UP-TO-DATE   AVAILABLE   AGE
myblog   1/1     1            1           2m22s
mysql    1/1     1            1           2d11h

  * `NAME` 列出了集群中 Deployments 的名称。
  * `READY`显示当前正在运行的副本数/期望的副本数。
  * `UP-TO-DATE`显示已更新以实现期望状态的副本数。
  * `AVAILABLE`显示应用程序可供用户使用的副本数。
  * `AGE` 显示应用程序运行的时间量。

# 查看pod
$ kubectl -n luffy get po
NAME                      READY   STATUS    RESTARTS   AGE
myblog-7c96c9f76b-qbbg7   1/1     Running   0          109s
mysql-85f4f65f99-w6jkj    1/1     Running   0          2m28s

# 查看replicaSet
$ kubectl -n luffy get rs

## 删除pod，观察pod状态变化
$ kubectl -n luffy delete pod myblog-7c96c9f76b-qbbg7

# 观察pod
$ kubectl get pods -o wide

## 设置两个副本, 或者通过kubectl -n luffy edit deploy myblog的方式，最好通过修改文件，然后apply的方式，这样yaml文件可以保持同步
$ kubectl -n luffy scale deploy myblog --replicas=2
deployment.extensions/myblog scaled

# 观察pod
$ kubectl get pods -o wide
NAME                      READY   STATUS    RESTARTS   AGE
myblog-7c96c9f76b-qbbg7   1/1     Running   0          11m
myblog-7c96c9f76b-s6brm   1/1     Running   0          55s
mysql-85f4f65f99-w6jkj    1/1     Running   0          11m

$ vi mybolg/blog/template/index.html

$ docker build . -t 172.21.51.67:5000/myblog:v2 -f Dockerfile
$ docker push 172.21.51.67:5000/myblog:v2

...

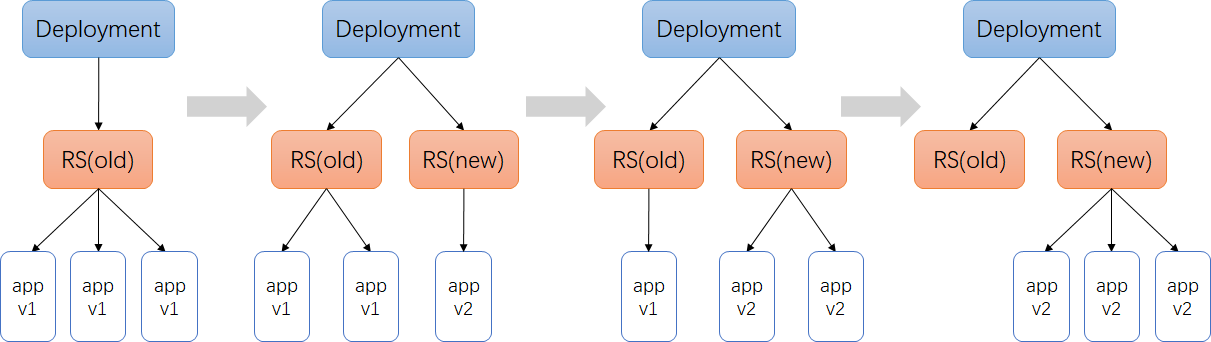

spec:
  replicas: 2	#指定Pod副本数
  selector:		#指定Pod的选择器
    matchLabels:
      app: myblog
  strategy:
    rollingUpdate:
      maxSurge: 1
      maxUnavailable: 25%
    type: RollingUpdate		#指定更新方式为滚动更新，默认策略，通过get deploy yaml查看
    ...

#查看滚动更新事件
$ kubectl -n luffy describe deploy myblog
...
Events:
  Type    Reason             Age   From                   Message
  ----    ------             ----  ----                   -------
  Normal  ScalingReplicaSet  11s   deployment-controller  Scaled up replica set myblog-6cf56fc848 to 1
  Normal  ScalingReplicaSet  11s   deployment-controller  Scaled down replica set myblog-6fdcf98f9 to 1
  Normal  ScalingReplicaSet  11s   deployment-controller  Scaled up replica set myblog-6cf56fc848 to 2
  Normal  ScalingReplicaSet  6s    deployment-controller  Scaled down replica set myblog-6fdcf98f9 to 0
$ kubectl get rs
NAME                     DESIRED   CURRENT   READY   AGE
myblog-6cf56fc848   2         2         2       16h
myblog-6fdcf98f9    0         0         0       16h

$ kubectl -n luffy rollout history deploy myblog ##CHANGE-CAUSE为空
$ kubectl delete -f deploy-myblog.yaml    ## 方便演示到具体效果，删掉已有deployment

$ kubectl create -f deploy-myblog.yaml --record

$ kubectl -n luffy set image deploy myblog myblog=172.21.51.67:5000/myblog:v2 --record=true

$ kubectl -n luffy rollout history deploy myblog
deployment.extensions/myblog
REVISION  CHANGE-CAUSE
1         kubectl create --filename=deploy-myblog.yaml --record=true
2         kubectl set image deploy myblog myblog=172.21.51.67:5000/demo/myblog:v1 --record=true

$ kubectl -n luffy rollout undo deploy myblog --to-revision=1
deployment.extensions/myblog rolled back

# 访问应用测试

apiVersion: v1
kind: Service
metadata:
  name: myblog
  namespace: luffy
spec:
  ports:
  - port: 80
    protocol: TCP
    targetPort: 8002
  selector:
    app: myblog
  type: ClusterIP

## 别名
$ alias kd='kubectl -n luffy'

## 创建服务
$ kd create -f svc-myblog.yaml
$ kd get po --show-labels
NAME                      READY   STATUS    RESTARTS   AGE    LABELS
myblog-5c97d79cdb-jn7km   1/1     Running   0          6m5s   app=myblog
mysql-85f4f65f99-w6jkj    1/1     Running   0          176m   app=mysql

$ kd get svc
NAME     TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)   AGE
myblog   ClusterIP   10.99.174.93   <none>        80/TCP    7m50s

$ kd describe svc myblog
Name:              myblog
Namespace:         demo
Labels:            <none>
Annotations:       <none>
Selector:          app=myblog
Type:              ClusterIP
IP:                10.99.174.93
Port:              <unset>  80/TCP
TargetPort:        8002/TCP
Endpoints:         10.244.0.68:8002
Session Affinity:  None
Events:            <none>

## 扩容myblog服务
$ kd scale deploy myblog --replicas=2
deployment.extensions/myblog scaled

## 再次查看
$ kd describe svc myblog
Name:              myblog
Namespace:         demo
Labels:            <none>
Annotations:       <none>
Selector:          app=myblog
Type:              ClusterIP
IP:                10.99.174.93
Port:              <unset>  80/TCP
TargetPort:        8002/TCP
Endpoints:         10.244.0.68:8002,10.244.1.158:8002
Session Affinity:  None
Events:            <none>

$ kd get endpoints myblog
NAME     ENDPOINTS                            AGE
myblog   10.244.0.68:8002,10.244.1.158:8002   7m

$ kd get svc myblog
NAME   TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)   AGE
myblog   ClusterIP   10.99.174.93   <none>        80/TCP    13m
$ curl 10.99.174.93/blog/index/

apiVersion: v1
kind: Service
metadata:
  name: mysql
  namespace: luffy
spec:
  ports:
  - port: 3306
    protocol: TCP
    targetPort: 3306
  selector:
    app: mysql
  type: ClusterIP

$ kd get svc mysql
mysql    ClusterIP   10.108.214.84   <none>        3306/TCP   3s
$ curl 10.108.214.84:3306

## 演示思路：在myblog的容器中直接通过service名称访问服务，观察是否可以访问通

# 先查看服务
$ kd get svc
NAME     TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)    AGE
myblog   ClusterIP   10.99.174.93    <none>        80/TCP     59m
mysql    ClusterIP   10.108.214.84   <none>        3306/TCP   35m

# 进入myblog容器
$ kd exec -ti myblog-5c97d79cdb-j485f bash
[root@myblog-5c97d79cdb-j485f myblog]# curl mysql:3306
5.7.29 )→  (mysql_native_password ot packets out of order
[root@myblog-5c97d79cdb-j485f myblog]# curl myblog/blog/index/
我的博客列表

    spec:
      hostNetwork: true	# 去掉此行
      volumes:
      - name: mysql-data
        hostPath:
          path: /opt/mysql/data

apiVersion: v1
kind: ConfigMap
metadata:
  name: myblog
  namespace: luffy
data:
  MYSQL_HOST: "mysql"	# 此处替换为mysql
  MYSQL_PORT: "3306"

$ kubectl delete -f deployment-mysql.yaml

## myblog不用动，会自动因健康检测不过而重启

$ kubectl -n kube-system get po -o wide|grep dns
coredns-d4475785-2w4hk             1/1     Running   0          4d22h   10.244.0.64
coredns-d4475785-s49hq             1/1     Running   0          4d22h   10.244.0.65

# 查看myblog的pod解析配置
$ kubectl -n luffy exec -ti myblog-5c97d79cdb-j485f bash
[root@myblog-5c97d79cdb-j485f myblog]# cat /etc/resolv.conf
nameserver 10.96.0.10
search luffy.svc.cluster.local svc.cluster.local cluster.local
options ndots:5

## 10.96.0.10 从哪来
$ kubectl -n kube-system get svc
NAME       TYPE        CLUSTER-IP   EXTERNAL-IP   PORT(S)         AGE
kube-dns   ClusterIP   10.96.0.10   <none>        53/UDP,53/TCP   51d

## 启动pod的时候，会把kube-dns服务的cluster-ip地址注入到pod的resolve解析配置中，同时添加对应的namespace的search域。 因此跨namespace通过service name访问的话，需要添加对应的namespace名称，
service_name.namespace
$ kubectl get svc
NAME         TYPE        CLUSTER-IP   EXTERNAL-IP   PORT(S)   AGE
kubernetes   ClusterIP   10.96.0.1    <none>        443/TCP   26h

apiVersion: v1
kind: Service
metadata:
  name: myblog-np
  namespace: luffy
spec:
  ports:
  - port: 80
    protocol: TCP
    targetPort: 8002
  selector:
    app: myblog
  type: NodePort

$ kd create -f svc-myblog-nodeport.yaml
service/myblog-np created
$ kd get svc
NAME        TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)        AGE
myblog      ClusterIP   10.99.174.93     <none>        80/TCP         102m
myblog-np   NodePort    10.105.228.101   <none>        80:30647/TCP   4s
mysql       ClusterIP   10.108.214.84    <none>        3306/TCP       77m

#集群内每个节点的NodePort端口都会进行监听
$ curl 172.21.51.67:30647/blog/index/
我的博客列表
$ curl 172.21.51.68:30647/blog/index/
我的博客列表
## 浏览器访问

$ iptables-save |grep -v myblog-np|grep  "luffy/myblog"
-A KUBE-SERVICES ! -s 10.244.0.0/16 -d 10.99.174.93/32 -p tcp -m comment --comment "demo/myblog: cluster IP" -m tcp --dport 80 -j KUBE-MARK-MASQ
-A KUBE-SERVICES -d 10.99.174.93/32 -p tcp -m comment --comment "demo/myblog: cluster IP" -m tcp --dport 80 -j KUBE-SVC-WQNGJ7YFZKCTKPZK

$ iptables-save |grep KUBE-SVC-WQNGJ7YFZKCTKPZK
-A KUBE-SVC-WQNGJ7YFZKCTKPZK -m statistic --mode random --probability 0.50000000000 -j KUBE-SEP-GB5GNOM5CZH7ICXZ
-A KUBE-SVC-WQNGJ7YFZKCTKPZK -j KUBE-SEP-7GWC3FN2JI5KLE47

$  iptables-save |grep KUBE-SEP-GB5GNOM5CZH7ICXZ
-A KUBE-SEP-GB5GNOM5CZH7ICXZ -p tcp -m tcp -j DNAT --to-destination 10.244.1.158:8002

$ iptables-save |grep KUBE-SEP-7GWC3FN2JI5KLE47
-A KUBE-SEP-7GWC3FN2JI5KLE47 -p tcp -m tcp -j DNAT --to-destination 10.244.1.159:8002

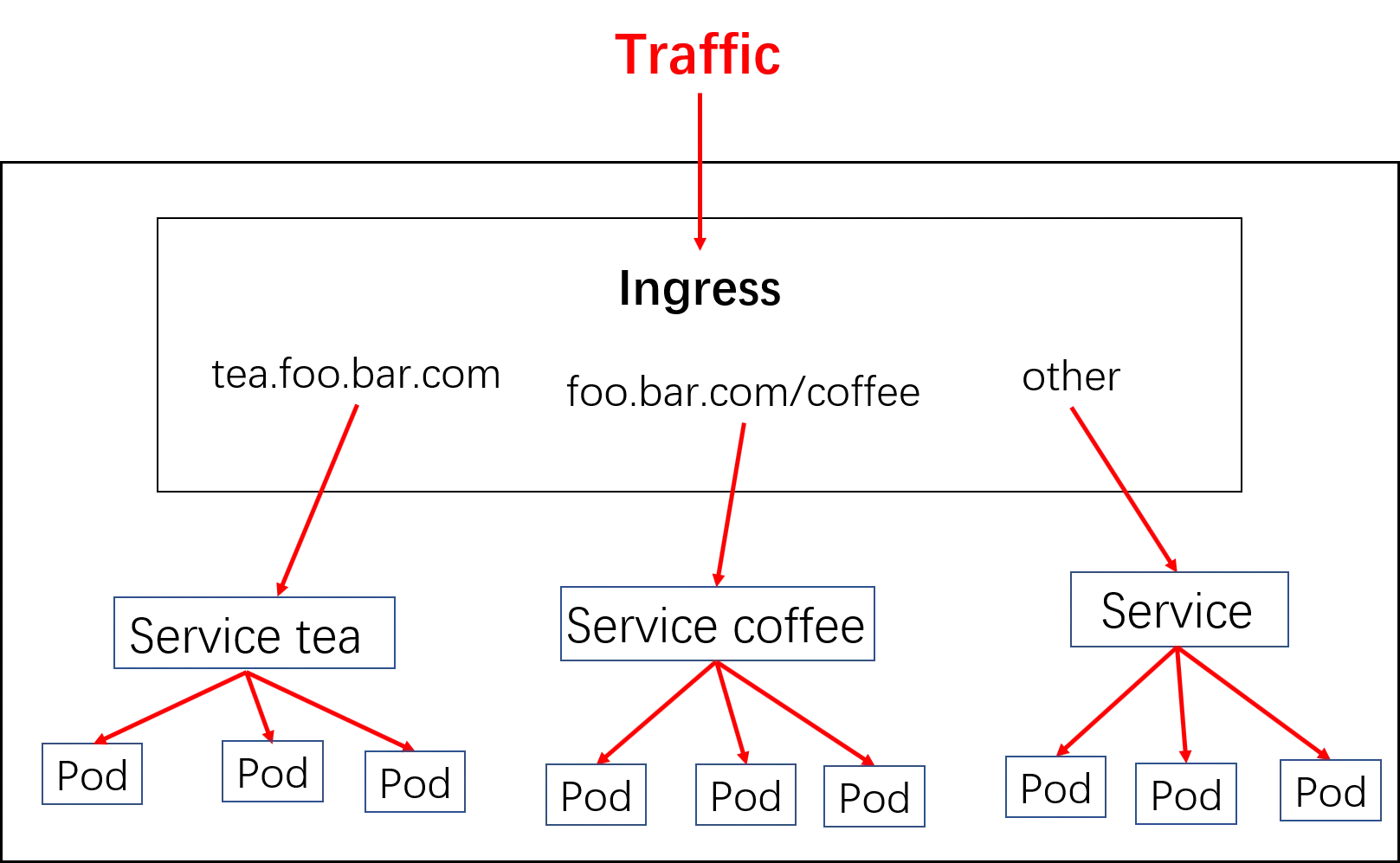

$ wget https://raw.githubusercontent.com/kubernetes/ingress-nginx/nginx-0.30.0/deploy/static/mandatory.yaml
## 或者使用myblog/deployment/ingress/mandatory.yaml
## 修改部署节点
$ grep -n5 nodeSelector mandatory.yaml
212-    spec:
213-      hostNetwork: true #添加为host模式
214-      # wait up to five minutes for the drain of connections
215-      terminationGracePeriodSeconds: 300
216-      serviceAccountName: nginx-ingress-serviceaccount
217:      nodeSelector:
218-        ingress: "true"		#替换此处，来决定将ingress部署在哪些机器
219-      containers:
220-        - name: nginx-ingress-controller
221-          image: quay.io/kubernetes-ingress-controller/nginx-ingress-controller:0.30.0
222-          args:

# 为k8s-master节点添加label
$ kubectl label node k8s-master ingress=true

$ kubectl create -f mandatory.yaml

apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: myblog
  namespace: luffy
spec:
  rules:
  - host: myblog.luffy.com
    http:
      paths:
      - path: /
        backend:
          serviceName: myblog
          servicePort: 80

...
                server_name myblog.luffy.com ;

                listen 80  ;
                listen [::]:80  ;
                listen 443  ssl http2 ;
                listen [::]:443  ssl http2 ;

                set $proxy_upstream_name "-";

                ssl_certificate_by_lua_block {
                        certificate.call()
                }

                location / {

                        set $namespace      "luffy";
                        set $ingress_name   "myblog";
 ...

172.21.51.67 myblog.luffy.com

#自签名证书
$ openssl req -x509 -nodes -days 2920 -newkey rsa:2048 -keyout tls.key -out tls.crt -subj "/CN=*.luffy.com/O=ingress-nginx"

# 证书信息保存到secret对象中，ingress-nginx会读取secret对象解析出证书加载到nginx配置中
$ kubectl -n luffy create secret tls https-secret --key tls.key --cert tls.crt

apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: myblog-tls
  namespace: luffy
spec:
  rules:
  - host: myblog.luffy.com
    http:
      paths:
      - path: /
        backend:
          serviceName: myblog
          servicePort: 80
  tls:
  - hosts:
    - myblog.luffy.com
    secretName: https-secret

apiVersion: networking.k8s.io/v1beta1
kind: Ingress
metadata:
  name: simple-fanout-example
  namespace: luffy
spec:
  rules:
  - host: myblog.luffy.com
    http:
      paths:
      - path: /foo
        backend:
          serviceName: service1
          servicePort: 4200
      - path: /bar
        backend:
          serviceName: service2
          servicePort: 8080
      - path: /
        backend:
          serviceName: myblog
          servicePort: 80

   apiVersion: networking.k8s.io/v1beta1
   kind: Ingress
   metadata:
     name: rewrite-path
     namespace: luffy
     annotations:
       nginx.ingress.kubernetes.io/rewrite-target: /admin/$1
   spec:
     rules:
     - host: myblog.luffy.com
       http:
         paths:
         - path: /foo/(.*)
           backend:
             serviceName: myblog
             servicePort: 80
